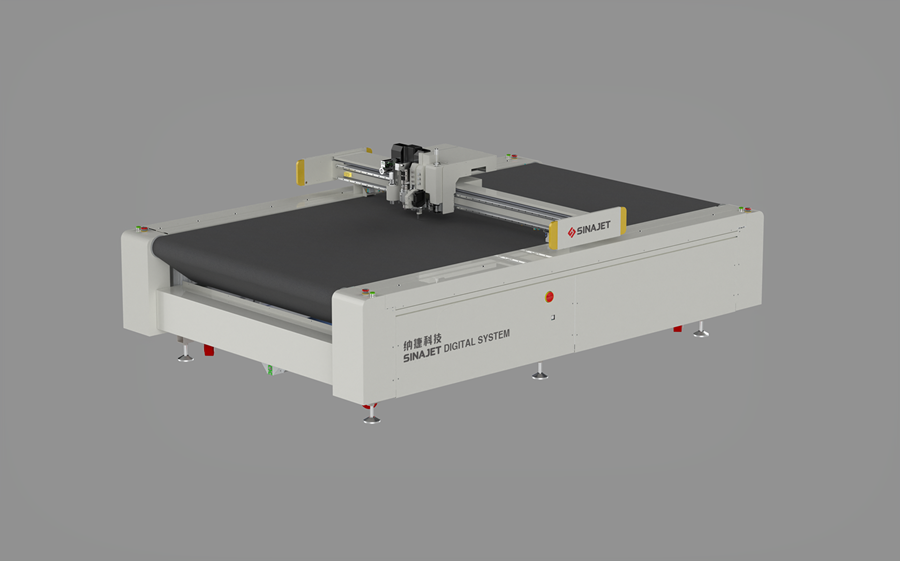

DG/DH Series Digital Cutter
Digital Flatbed Cutter With Collecting Table

DG/DH Series Digital Cutter

DG/DH Series Composite Materials Digital Cutter

1.  Advantages:

(1) DG Belt Standard Type; DH Customized Rack and Pinion Type

(2) Modular Cutting Tooles: Active Circular Knife, Oscillating Knife, Drag Knife, V-Cut, Ultrasonic Knife Can Meet Different Composite Material Cutting Requirement

(3) Anti-collision Devices and Infrared Blocking Device Ensure Operation Safety

(4) Software Advantages: Smart and Intelligent Software realized Easy Operation. Powerful R&D Ability Can Meet Customer's Special Cutting Requirements.

(5) Exclusive Adsorption Technology, Low Noise, Low Energy Consumption

Product Detail


DG/DH Series Composite Materials Digital Cutter

Digital Cutter advantages:

(1) DG Belt Standard Type; DH Customized Rack and Pinion Type

(2) Modular Cutting Tools: Active Circular Knife, Oscillating Knife, Drag Knife, V-Cut, Ultrasonic Knife Can Meet Different Composite Material Cutting Requirement

(2) Anti-collision Devices and Infrared Blocking Device Ensure Operation Safety

(3) Software Advantages: Smart and Intelligent Software realized Easy Operation. Powerful R&D Ability Can Meet Customer's Special Cutting Requirements.

(4) Exclusive Adsorption Technology, Low Noise, Low Energy Consumption


DG/DH Digital Cutter Parameters:

(1) Model: 1513/2513/2516/3016/4032/6030/6035/Customized

(2) Active Cutting Area (cm): 150 x130/250x130/250x160/300x160/400*320/600*300/600*350/Customized

(3) Working Table: Conveyor or Fixed Table Can be Optional

(4) Repeat Accuracy: ±0.1mm

(5) Max Cutting Thickness: 45mm

(6) Max Cutting Speed: 1700mm/s

(7) Max Single Axis (X or Y) Cutting Speed:1200mm/s

(8) Cutting Tools: Circular Knife, Oscillating Knife, V-Cut, Drag Knife, Ultrasonic Knife etc

(9) Material Fixing: Vacuum Adsorption

(10) File Format: dxf、hpgl、iso、pdf、cut、plt、gbr、etc...

(11) Data Transmission: LAN

(12) Working Voltage: AC220V/380V/50-60HZ

(13) Driving System: Intelligent Servo Control System

(14) Pump Power: 2.2-9.0KW

(15) Working Environment: Temperature 0-40℃, Humidity 20%-80% no condensation
